HTCC QFN Packages to 40GHz

• 6 Sizes: 3mm to 8mm
• Alumina or
AlN Construction
• Open Air Cavity
• Hermetically Sealable

• Bare or Grounded Seal Ring
• Custom Designs Available
Lids Available from Factory
High Temperature Co-Fired Ceramic (HTCC) QFN packages from Barry Industries feature low-loss broadband transitions for superior performance over frequency. HTCC construction provides for enhanced mechanical strength and higher thermal conductivity compared with LTCC. These hermetically sealable air cavity packages conform to JEDEC MO-220 footprints. Lids are available from the factory
Size
Pin
Count
Type
Configuration
JEDEC MO-220
Footprint


Ceramic
Metallization
RoHS
Part Number/
Data Sheet
Drawing Footprint
3mm 12 QFN Bare Seal Ring VEED-5 Alumina ENEPIG Yes QFN-3312-0520
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
3mm 12 QFN Grounded Seal Ring VEED-5 Alumina ENEPIG Yes QFN-3312-0521
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
3mm 12 QFN Castellated
Grounded Seal Ring
VEED-5 Alumina ENEPIG Yes QFN-3312-0522
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
3mm 12 QFN Bare Seal Ring VEED-5 AlN ENEPIG Yes QFN-3312-0720
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
3mm 12 QFN Grounded Seal Ring VEED-5 AlN ENEPIG Yes QFN-3312-0721
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
3mm 12 QFN Castellated
Grounded Seal Ring
VEED-5 AlN ENEPIG Yes QFN-3312-0722
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
4mm 20 QFN Bare Seal Ring VGGD-5 Alumina ENEPIG Yes QFN-4420-0520
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
4mm 20 QFN Grounded Seal Ring VGGD-5 Alumina ENEPIG Yes QFN-4420-0521
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
4mm 20 QFN Castellated
Grounded Seal Ring
VGGD-5 Alumina ENEPIG Yes QFN-4420-0522
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
4mm 20 QFN Bare Seal Ring VGGD-5 AlN ENEPIG Yes QFN-4420-0720
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
4mm 20 QFN Grounded Seal Ring VGGD-5 AlN ENEPIG Yes QFN-4420-0721
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
4mm 20 QFN Castellated
Grounded Seal Ring
VGGD-5 AlN ENEPIG Yes QFN-4420-0722
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
5mm 32 QFN Bare Seal Ring VHHD-5 Alumina ENEPIG Yes QFN-5532-0520
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
5mm 32 QFN Grounded Seal Ring VHHD-5 Alumina ENEPIG Yes QFN-5532-0521
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
5mm 32 QFN Castellated
Grounded Seal Ring
VHHD-5 Alumina ENEPIG Yes QFN-5532-0522
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
5mm 32 QFN Bare Seal Ring VHHD-5 AlN ENEPIG Yes QFN-5532-0720
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
5mm 32 QFN Grounded Seal Ring VHHD-5 AlN ENEPIG Yes QFN-5532-0721
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
5mm 32 QFN Castellated
Grounded Seal Ring
VHHD-5 AlN ENEPIG Yes QFN-5532-0722
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
6mm 36 QFN Bare Seal Ring VJJD-5 Alumina ENEPIG Yes QFN-6636-0520
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
6mm 36 QFN Grounded Seal Ring VJJD-5 Alumina ENEPIG Yes QFN-6636-0521
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
6mm 36 QFN Castellated
Grounded Seal Ring
VJJD-5 Alumina ENEPIG Yes QFN-6636-0522
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
6mm 36 QFN Bare Seal Ring VJJD-5 AlN ENEPIG Yes QFN-6636-0720
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
6mm 36 QFN Grounded Seal Ring VJJD-5 AlN ENEPIG Yes QFN-6636-0721
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
6mm 36 QFN Castellated
Grounded Seal Ring
VJJD-5 AlN ENEPIG Yes QFN-6636-0722
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
7mm 44 QFN Bare Seal Ring VKKD-3 Alumina ENEPIG Yes QFN-7744-0520
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
7mm 44 QFN Grounded Seal Ring VKKD-3 Alumina ENEPIG Yes QFN-7744-0521
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
7mm 44 QFN Castellated
Grounded Seal Ring
VKKD-3 Alumina ENEPIG Yes QFN-7744-0522
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
7mm 44 QFN Bare Seal Ring VKKD-3 AlN ENEPIG Yes QFN-7744-0720
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
7mm 44 QFN Grounded Seal Ring VKKD-3 AlN ENEPIG Yes QFN-7744-0721
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
7mm 44 QFN Castellated
Grounded Seal Ring
VKKD-3 AlN ENEPIG Yes QFN-7744-0722
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
8mm 48 QFN Bare Seal Ring VLLD Alumina ENEPIG Yes QFN-8848-0520
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
8mm 48 QFN Grounded Seal Ring VLLD Alumina ENEPIG Yes QFN-8848-0521
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
8mm 48 QFN Castellated
Grounded Seal Ring
VLLD Alumina ENEPIG Yes QFN-8848-0522
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
8mm 48 QFN Bare Seal Ring VLLD AlN ENEPIG Yes QFN-8848-0720
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
8mm 48 QFN Grounded Seal Ring VLLD AlN ENEPIG Yes QFN-8848-0721
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
8mm 48 QFN Castellated
Grounded Seal Ring
VLLD AlN ENEPIG Yes QFN-8848-0722
3mm QFN outline drawing3mm QFN PDF
3mm QFN outline drawing
Click on link for available Data Sheet. For more options, please contact us with your requirement.

(Click on column header to sort)

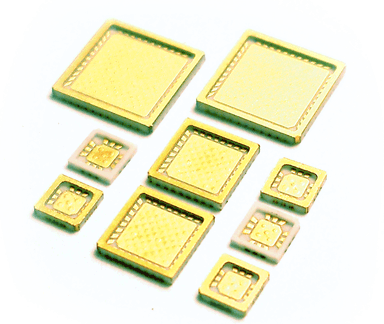

Ceramic QFN Package
Grounded Seal Ring
Castellated
Grounded Seal Ring
Tested to 40GHz
View Report
QFN Package in High Frequency Test Fixture
