Flip Chip Resistors w/ Backplane
RM Series
RM Series
Barry Industries manufacturers 'Flip Chip' w/ Backplane resistors on Alumina, AlN or BeO for solder, epoxy or wirebond attachment. These chip resistors are available in sizes 0402 to 5050 with standard resistance of 0.1Ω to 1GΩ and resistor tolerance to ±1%. Other values are available.
|

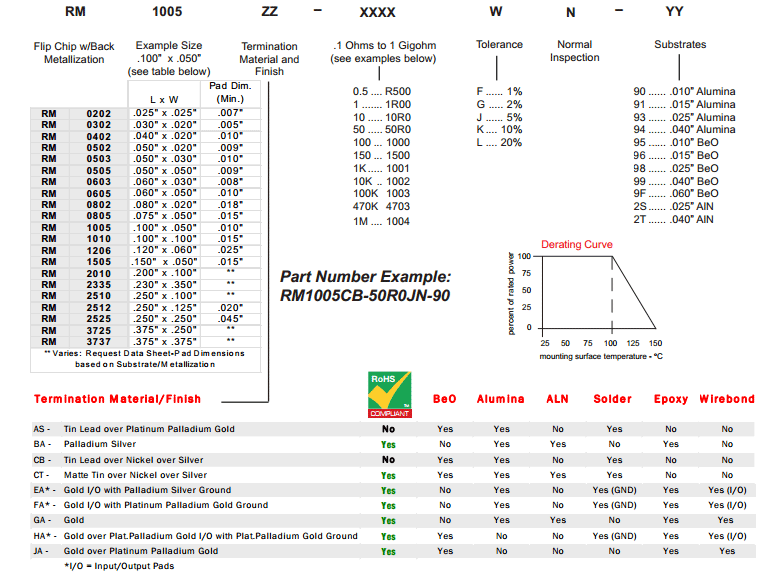

Part Number/
Data Sheet |
Size
|
Config.
|
Thickness
|
Substrate
|
Metallization
|
CW Power
(Max) (W) |
RoHS
|
|---|---|---|---|---|---|---|---|
| RM0201ZZ-XXXXWN-95 | 0201 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au | 0.25 | Yes |
| RM0202ZZ-XXXXWN-95 | 0202 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au | 0.2 | Yes |
| RM0302ZZ-XXXXWN-90 | 0302 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Multiple Options | 0.6 | Available |
| RM0402CB-XXXXWN-90 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | PdAg | 1.25 | Yes |
| RM0402CB-XXXXWN-90 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | SnPb over Ni over Ag | 1.25 | No |
| RM0402CT-XXXXWN-90 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Matte Tin over Ni over Ag | 1.25 | Yes |
| RM0402EA-XXXXWN-90 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au I/O with PdAg Ground | 1.25 | Yes |
| RM0402FA-XXXXWN-90 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au I/O with PtAu Ground | 1.25 | Yes |
| RM0402GA-XXXXWN-90 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au | 1.25 | Yes |
| RM0402BA-XXXXWN-91 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | PdAg | 1 | Yes |
| RM0402CB-XXXXWN-91 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | SnPb over Ni over Ag | 1 | No |
| RM0402CT-XXXXWN-91 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Matte Tin over Ni over Ag | 1 | Yes |
| RM0402EA-XXXXWN-91 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au I/O with PdAg Ground | 1 | Yes |
| RM0402FA-XXXXWN-91 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au I/O with PtAu Ground | 1 | Yes |
| RM0402GA-XXXXWN-91 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au | 1 | Yes |
| RM0402BA-XXXXWN-93 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | PdAg | 0.7 | Yes |
| RM0402CB-XXXXWN-93 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | SnPb over Ni over Ag | 0.7 | No |
| RM0402CT-XXXXWN-93 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | Matte Tin over Ni over Ag | 0.7 | Yes |
| RM0402EA-XXXXWN-93 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | Au I/O with PdAg Ground | 0.7 | Yes |
| RM0402FA-XXXXWN-93 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | Au I/O with PtAu Ground | 0.7 | Yes |
| RM0402GA-XXXXWN-93 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | Au | 0.7 | Yes |
| RM0402CB-XXXXWN-95 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | BeO | SnPb over Ni over Ag | 3 | No |
| RM0402CT-XXXXWN-95 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Matte Tin over Ni over Ag | 3 | Yes |
| RM0402HA-XXXXWN-95 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au over PtAdAg I/O with PtAdAg Ground | 3 | Yes |
| RM0402JA-XXXXWN-95 | 0402 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au over PtAdAg | 3 | Yes |
| RM0402CB-XXXXWN-96 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | BeO | SnPb over Ni over Ag | 3 | No |
| RM0402CT-XXXXWN-96 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Matte Tin over Ni over Ag | 3 | Yes |
| RM0402HA-XXXXWN-96 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtAdAg I/O with PtAdAg Ground | 3 | Yes |
| RM0402JA-XXXXWN-96 | 0402 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtAdAg | 3 | Yes |
| RM0402CB-XXXXWN-98 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | BeO | SnPb over Ni over Ag | 1.75 | No |
| RM0402CT-XXXXWN-98 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Matte Tin over Ni over Ag | 1.75 | Yes |
| RM0402HA-XXXXWN-98 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Au over PtAdAg I/O with PtAdAg Ground | 1.75 | Yes |
| RM0402JA-XXXXWN-98 | 0402 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Au over PtAdAg | 1.75 | Yes |
| RM0502BA-XXXXWN-90 | 0502 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | PdAg | 0.1 | Yes |
| RM0502CB-XXXXWN-90 | 0502 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | SnPb over Ni over Ag | 0.1 | No |
| RM0502CT-XXXXWN-90 | 0502 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Matte Tin over Ni over Ag | 0.1 | Yes |
| RM0502GA-XXXXWN-90 | 0502 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au | 0.1 | Yes |
| RM0502BA-XXXXWN-90 | 0502 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au I/O with PdAg Ground | 0.1 | Yes |
| RM0502JA-XXXXWN-95 | 0502 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au over PtPdAg | 0.1 | Yes |
| RM0505CT-XXXXWN-90 | 0505 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Matte Tin over Ni over Ag | 0.5 | Yes |
| RM0505CT-XXXXWN-90 | 0505 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | SnPb over Ni over Ag | 0.5 | No |
| RM0505BA-XXXXWN-90 | 0505 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | PdAg | 0.5 | Yes |
| RM0505GA-XXXXWN-90 | 0505 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au | 0.5 | Yes |
| RM0505DS-XXXXWN-90 | 0505 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Sn96 over PdAg | 0.5 | Yes |
| RM0505CT-XXXXWN-93 | 0505 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Matte Tin over Ni over Ag | 0.5 | Yes |
| RM0505CB-XXXXWN-93 | 0505 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | SnPb over Ni over Ag | 0.5 | No |
| RM0505BA-XXXXWN-93 | 0505 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | PdAg | 0.5 | Yes |
| RM0505GA-XXXXWN-93 | 0505 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au | 0.5 | Yes |
| RM0505DS-XXXXWN-93 | 0505 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Sn96 over PdAg | 0.5 | Yes |
| RM0505CT-XXXXWN-95 | 0505 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Matte Tin over Ni over Ag | 3 | Yes |
| RM0505CB-XXXXWN-95 | 0505 | Flip Chip w/ Back Metallzation | 0.010" | BeO | SnPb over Ni over Ag | 3 | No |
| RM0505HA-XXXXWN-95 | 0505 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au over PtPdAu I/O with PtAu Ground | 3 | Yes |
| RM0505JA-XXXXWN-95 | 0505 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au over PtPdAu | 3 | Yes |
| RM0505CT-XXXXWN-96 | 0505 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Matte Tin over Ni over Ag | 3 | Yes |
| RM0505CB-XXXXWN-96 | 0505 | Flip Chip w/ Back Metallzation | 0.015" | BeO | SnPb over Ni over Ag | 3 | No |
| RM0505HA-XXXXWN-96 | 0505 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtPdAu I/O with PtAu Ground | 3 | Yes |
| RM0505JA-XXXXWN-96 | 0505 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtPdAu | 3 | Yes |
| RM0505CT-XXXXWN-98 | 0505 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Matte Tin over Ni over Ag | 3 | Yes |
| RM0505CB-XXXXWN-98 | 0505 | Flip Chip w/ Back Metallzation | 0.025" | BeO | SnPb over Ni over Ag | 3 | No |
| RM0505HA-XXXXWN-98 | 0505 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Au over PtPdAu I/O with PtAu Ground | 3 | Yes |
| RM0505JA-XXXXWN-98 | 0505 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Au over PtPdAu | 3 | Yes |
| RM0603CT-XXXXWN-96 | 0603 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Matte Tin over Ni over Ag | 2.4 | Yes |
| RM0603CB-XXXXWN-96 | 0603 | Flip Chip w/ Back Metallzation | 0.015" | BeO | SnPb over Ni over Ag | 2.4 | No |
| RM0603HA-XXXXWN-96 | 0603 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtPdAu I/O with PtAu Ground | 2.4 | Yes |
| RM0603JA-XXXXWN-96 | 0603 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtPdAu | 2.4 | Yes |
| RM0805CB-XXXXWN-90 | 0805 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | SnPb over Ni over Ag | 3 | No |
| RM0805CT-XXXXWN-90 | 0805 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Matte Tin over Ni over Ag | 3 | Yes |
| RM0805GA-XXXXWN-90 | 0805 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au | 3 | Yes |
| RM0805CB-XXXXWN-96 | 0805 | Flip Chip w/ Back Metallzation | 0.015" | BeO | SnPb over Ni over Ag | 7 | No |
| RM0805CT-XXXXWN-96 | 0805 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Matte Tin over Ni over Ag | 7 | Yes |
| RM0805JA-XXXXWN-96 | 0805 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtPdAu | 7 | Yes |
| RM0805CB-XXXXWN-98 | 0805 | Flip Chip w/ Back Metallzation | 0.025" | BeO | SnPb over Ni over Ag | 6.25 | No |
| RM0805CT-XXXXWN-98 | 0805 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Matte Tin over Ni over Ag | 6.25 | Yes |
| RM0805JA-XXXXWN-98 | 0805 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Au | 6.25 | Yes |
| RM0805CB-XXXXWN-99 | 0805 | Flip Chip w/ Back Metallzation | 0.040" | BeO | SnPb over Ni over Ag | 5 | No |
| RM0805CT-XXXXWN-99 | 0805 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Matte Tin over Ni over Ag | 5 | Yes |
| RM0805JA-XXXXWN-99 | 0805 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au | 5 | Yes |
| RM0805CB-XXXXWN-2S | 0805 | Flip Chip w/ Back Metallzation | 0.025" | AlN | SnPb over Ni over Ag | 7 | No |
| RM0805CT-XXXXWN-2S | 0805 | Flip Chip w/ Back Metallzation | 0.025" | AlN | Matte Tin over Ni over Ag | 7 | Yes |
| RM0805GA-XXXXWN-2S | 0805 | Flip Chip w/ Back Metallzation | 0.025" | AlN | Au | 7 | Yes |
| RM0805CB-XXXXWN-2T | 0805 | Flip Chip w/ Back Metallzation | 0.040" | AlN | SnPb over Ni over Ag | 5 | No |
| RM0805CT-XXXXWN-2T | 0805 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Matte Tin over Ni over Ag | 5 | Yes |
| RM0805GA-XXXXWN-2T | 0805 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Au | 5 | Yes |
| RM1005BA-XXXXWN-90 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | PdAg | 3.5 | Yes |
| RM1005CB-XXXXWN-90 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | SnPb over Ni over Ag | 3.5 | No |
| RM1005CT-XXXXWN-90 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Matte Tin over Ni over Ag | 3.5 | Yes |
| RM1005EA-XXXXWN-90 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au I/O with PdAg Ground | 3.5 | Yes |
| RM1005FA-XXXXWN-90 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au I/O with PtAu Ground | 3.5 | Yes |
| RM1005GA-XXXXWN-90 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | Alumina | Au | 3.5 | Yes |
| RM1005BA-XXXXWN-91 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | PdAg | 2.5 | Yes |
| RM1005CB-XXXXWN-91 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | SnPb over Ni over Ag | 2.5 | No |
| RM1005CT-XXXXWN-91 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Matte Tin over Ni over Ag | 2.5 | Yes |
| RM1005EA-XXXXWN-91 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au I/O with PdAg Ground | 2.5 | Yes |
| RM1005FA-XXXXWN-91 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au I/O with PtAu Ground | 2.5 | Yes |
| RM1005GA-XXXXWN-91 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au | 2.5 | Yes |
| RM1005BA-XXXXWN-93 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | PdAg | 1 | Yes |
| RM1005CB-XXXXWN-93 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | SnPb over Ni over Ag | 1 | No |
| RM1005CT-XXXXWN-93 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | Matte Tin over Ni over Ag | 1 | Yes |
| RM1005EA-XXXXWN-93 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | Au I/O with PdAg Ground | 1 | Yes |
| RM1005FA-XXXXWN-93 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | Au I/O with PtAu Ground | 1 | Yes |
| RM1005BA-XXXXWN-93 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | Alumina | Au | 1 | Yes |
| RM1005BA-XXXXWN-94 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | Alumina | PdAg | 0.8 | Yes |
| RM1005CB-XXXXWN-94 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | Alumina | SnPb over Ni over Ag | 0.8 | No |
| RM1005CT-XXXXWN-94 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | Alumina | Matte Tin over Ni over Ag | 0.8 | Yes |
| RM1005EA-XXXXWN-94 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | Alumina | Au I/O with PdAg Ground | 0.8 | Yes |
| RM1005FA-XXXXWN-94 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | Alumina | Au I/O with PtAu Ground | 0.8 | Yes |
| RM1005GA-XXXXWN-94 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | Alumina | Au | 0.8 | Yes |
| RM1005CB-XXXXWN-95 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | BeO | SnPb over Ni over Ag | 35 | No |
| RM1005CT-XXXXWN-95 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Matte Tin over Ni over Ag | 35 | Yes |
| RM1005HA-XXXXWN-95 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au over PtPdAu with PtPdAu Ground | 35 | Yes |
| RM1005JA-XXXXWN-95 | 1005 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au over PtPdAu | 35 | Yes |
| RM1005CB-XXXXWN-96 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | BeO | SnPb over Ni over Ag | 30 | No |
| RM1005CT-XXXXWN-96 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Matte Tin over Ni over Ag | 30 | Yes |
| RM1005HA-XXXXWN-96 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtPdAu with PtPdAu Ground | 30 | Yes |
| RM1005JA-XXXXWN-96 | 1005 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtPdAu | 30 | Yes |
| RM1005CB-XXXXWN-98 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | BeO | SnPb over Ni over Ag | 10 | No |
| RM1005CT-XXXXWN-98 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Matte Tin over Ni over Ag | 10 | Yes |
| RM1005HA-XXXXWN-98 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Au over PtPdAu with PtPdAu Ground | 10 | Yes |
| RM1005JA-XXXXWN-98 | 1005 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Au over PtPdAu | 10 | Yes |
| RM1005CB-XXXXWN-99 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | BeO | SnPb over Ni over Ag | 5 | No |
| RM1005CT-XXXXWN-98 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Matte Tin over Ni over Ag | 5 | Yes |
| RM1005HA-XXXXWN-98 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu with PtPdAu Ground | 5 | Yes |
| RM1005JA-XXXXWN-98 | 1005 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu | 5 | Yes |
| RM1005CB-XXXXWN-9F | 1005 | Flip Chip w/ Back Metallzation | 0.060" | BeO | SnPb over Ni over Ag | 2.5 | No |
| RM1005CT-XXXXWN-9F | 1005 | Flip Chip w/ Back Metallzation | 0.060" | BeO | Matte Tin over Ni over Ag | 2.5 | Yes |
| RM1005HA-XXXXWN-9F | 1005 | Flip Chip w/ Back Metallzation | 0.060" | BeO | Au over PtPdAu with PtPdAu Ground | 2.5 | Yes |
| RM1005JA-XXXXWN-9F | 1005 | Flip Chip w/ Back Metallzation | 0.060" | BeO | Au over PtPdAu | 2.5 | Yes |
| RM1206CB-XXXXWN-93 | 1206 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | SnPb over Ni over Ag | 5 | No |
| RM1206CT-XXXXWN-93 | 1206 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Matte Tin over Ni over Ag | 5 | Yes |
| RM1206EA-XXXXWN-93 | 1206 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au I/O with PdAg Ground | 5 | Yes |
| RM1206FA-XXXXWN-93 | 1206 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au I/O with PtAu Ground | 5 | Yes |
| RM1206GA-XXXXWN-93 | 1206 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au | 5 | Yes |
| RM1505BA-XXXXWN-91 | 1505 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | PdAg | 3 | Yes |
| RM1505CB-XXXXWN-91 | 1505 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | SnPb over Ni over Ag | 3 | No |
| RM1505CT-XXXXWN-91 | 1505 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Matte Tin over Ni over Ag | 3 | Yes |
| RM1505GA-XXXXWN-91 | 1505 | Flip Chip w/ Back Metallzation | 0.015" | Alumina | Au | 3 | Yes |
| RM1505CB-XXXXWN-95 | 1505 | Flip Chip w/ Back Metallzation | 0.010" | BeO | SnPb over Ni over Ag | 10 | No |
| RM1505CT-XXXXWN-95 | 1505 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Matte Tin over Ni over Ag | 10 | Yes |
| RM1505JA-XXXXWN-95 | 1505 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au over PtPdAu | 10 | Yes |
| RM1505HA-XXXXWN-95 | 1505 | Flip Chip w/ Back Metallzation | 0.010" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 10 | Yes |
| RM2010CB-XXXXWN-2T-02 | 2010 | Flip Chip w/ Back Metallzation | 0.040" | AlN | SnPb over Ni over Ag | 20 | No |
| RM2010CT-XXXXWN-2T-02 | 2010 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Matte Tin over Ni over Ag | 20 | Yes |
| RM2010GA-XXXXWN-2T-02 | 2010 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Au | 20 | Yes |
| RM2010CB-XXXXWN-99-02 | 2010 | Flip Chip w/ Back Metallzation | 0.040" | BeO | SnPb over Ni over Ag | 40 | No |
| RM2010CT-XXXXWN-99-02 | 2010 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Matte Tin over Ni over Ag | 40 | Yes |
| RM2010JA-XXXXWN-99-02 | 2010 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu | 40 | Yes |
| RM2010HA-XXXXWN-99-02 | 2010 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 40 | Yes |
| RM2512JA-XXXXWN-96 | 2512 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtAu | 40 | Yes |
| RM2525CB-XXXXWN-2T | 2525 | Flip Chip w/ Back Metallzation | 0.040" | AlN | SnPb over Ni over Ag | 50 | No |
| RM2525CT-XXXXWN-2T | 2525 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Matte Tin over Ni over Ag | 50 | Yes |
| RM2525GA-XXXXWN-2T | 2525 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Au | 50 | Yes |
| RM2525CB-XXXXWN-99 | 2525 | Flip Chip w/ Back Metallzation | 0.040" | BeO | SnPb over Ni over Ag | 100 | No |
| RM2525CT-XXXXWN-99 | 2525 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Matte Tin over Ni over Ag | 100 | Yes |
| RM2525JA-XXXXWN-99 | 2525 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu | 100 | Yes |
| RM2525HA-XXXXWN-99 | 2525 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 100 | Yes |
| RM2525CB-XXXXWN-9F | 2525 | Flip Chip w/ Back Metallzation | 0.060" | BeO | SnPb over Ni over Ag | 100 | No |
| RM2525CT-XXXXWN-9F | 2525 | Flip Chip w/ Back Metallzation | 0.060" | BeO | Matte Tin over Ni over Ag | 100 | Yes |
| RM2525JA-XXXXWN-9F | 2525 | Flip Chip w/ Back Metallzation | 0.060" | BeO | Au over PtPdAu | 100 | Yes |
| RM2525HA-XXXXWN-9F | 2525 | Flip Chip w/ Back Metallzation | 0.060" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 100 | Yes |
| RM2335CB-XXXXWN-2T | 2335 | Flip Chip w/ Back Metallzation | 0.040" | AlN | SnPb over Ni over Ag | 150 | No |
| RM2335CB-XXXXWN-2T | 2335 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Matte Tin over Ni over Ag | 150 | Yes |
| RM2335CB-XXXXWN-2T | 2335 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Au | 150 | Yes |
| RM2335CB-XXXXWN-99-01 | 2335 | Flip Chip w/ Back Metallzation | 0.040" | BeO | SnPb over Ni over Ag | 150 | No |
| RM2335CT-XXXXWN-99-01 | 2335 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Matte Tin over Ni over Ag | 150 | Yes |
| RM2335JA-XXXXWN-99-01 | 2335 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu | 150 | Yes |
| RM2335HA-XXXXWN-99-01 | 2335 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 150 | Yes |
| RM2335CB-XXXXWN-99-06 | 2335 | Flip Chip w/ Back Metallzation | 0.040" | BeO | SnPb over Ni over Ag | 200 | No |
| RM2335CT-XXXXWN-99-06 | 2335 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Matte Tin over Ni over Ag | 200 | Yes |
| RM2335JA-XXXXWN-99-06 | 2335 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu | 200 | Yes |
| RM2335HA-XXXXWN-99-06 | 2335 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 200 | Yes |
| RM3737CB-XXXXWN-96 | 3737 | Flip Chip w/ Back Metallzation | 0.015" | BeO | SnPb over Ni over Ag | 250 | No |
| RM3737CT-XXXXWN-96 | 3737 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Matte Tin over Ni over Ag | 250 | Yes |
| RM3737JA-XXXXWN-96 | 3737 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtPdAu | 250 | Yes |
| RM3737HA-XXXXWN-96 | 3737 | Flip Chip w/ Back Metallzation | 0.015" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 250 | Yes |
| RM3737CB-XXXXWN-98 | 3737 | Flip Chip w/ Back Metallzation | 0.025" | BeO | SnPb over Ni over Ag | 250 | No |
| RM3737CT-XXXXWN-98 | 3737 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Matte Tin over Ni over Ag | 250 | Yes |
| RM3737JA-XXXXWN-98 | 3737 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Au over PtPdAu | 250 | Yes |
| RM3737HA-XXXXWN-98 | 3737 | Flip Chip w/ Back Metallzation | 0.025" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 250 | Yes |
| RM3737CB-XXXXWN-99 | 3737 | Flip Chip w/ Back Metallzation | 0.040" | BeO | SnPb over Ni over Ag | 250 | No |
| RM3737CT-XXXXWN-99 | 3737 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Matte Tin over Ni over Ag | 250 | Yes |
| RM3737JA-XXXXWN-99 | 3737 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu | 250 | Yes |
| RM3737HA-XXXXWN-99 | 3737 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 250 | Yes |
| RM3737CB-XXXXWN-9F | 3737 | Flip Chip w/ Back Metallzation | 0.060" | BeO | SnPb over Ni over Ag | 250 | No |
| RM3737CT-XXXXWN-9F | 3737 | Flip Chip w/ Back Metallzation | 0.060" | BeO | Matte Tin over Ni over Ag | 250 | Yes |
| RM3737JA-XXXXWN-9F | 3737 | Flip Chip w/ Back Metallzation | 0.060" | BeO | Au over PtPdAu | 250 | Yes |
| RM3737HA-XXXXWN-9F | 3737 | Flip Chip w/ Back Metallzation | 0.060" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 250 | Yes |
| RM3737CB-XXXXWN-2T | 3737 | Flip Chip w/ Back Metallzation | 0.040" | AlN | SnPb over Ni over Ag | 250 | No |
| RM3737CT-XXXXWN-2T | 3737 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Matte Tin over Ni over Ag | 250 | Yes |
| RM3737GA-XXXXWN-2T | 3737 | Flip Chip w/ Back Metallzation | 0.040" | AlN | Au | 250 | Yes |
| RM3737CB-XXXXWN-2U | 3737 | Flip Chip w/ Back Metallzation | 0.060" | AlN | SnPb over Ni over Ag | 250 | No |
| RM3737CB-XXXXWN-2U | 3737 | Flip Chip w/ Back Metallzation | 0.060" | AlN | Matte Tin over Ni over Ag | 250 | Yes |
| RM3737CB-XXXXWN-2U | 3737 | Flip Chip w/ Back Metallzation | 0.060" | AlN | Au | 250 | Yes |
| RM5050CT-XXXXWN-99 | 5050 | Flip Chip w/ Back Metallzation | 0.040" | BeO | SnPb over Ni over Ag | 400 | No |
| RM5050CT-XXXXWN-99 | 5050 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Matte Tin over Ni over Ag | 400 | Yes |
| RM5050JA-XXXXWN-99 | 5050 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu | 400 | Yes |
| RM5050HA-XXXXWN-99 | 5050 | Flip Chip w/ Back Metallzation | 0.040" | BeO | Au over PtPdAu I/O with PtPdAu Ground | 400 | Yes |
RM Series Chip Resistor Configuration
Click on link for available Data Sheet. For more options, please contact us with your requirement.
(Click on column header to sort)
(Click on column header to sort)
Ordering Information
Below are Barry Industries' standard 'Flip Chip w/ Backplane' resistors. Engineers are welcome to contact us and we will design a custom 'Flip Chip w/ Backplane' resistors to your exact specifications.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
AlN Note: 10Ω to 1KΩ ohm available. Special ohmic value requests welcome.
Other Available Configurations
The RM Series resistors feature a full backplane for maximum contact with your heatsink.

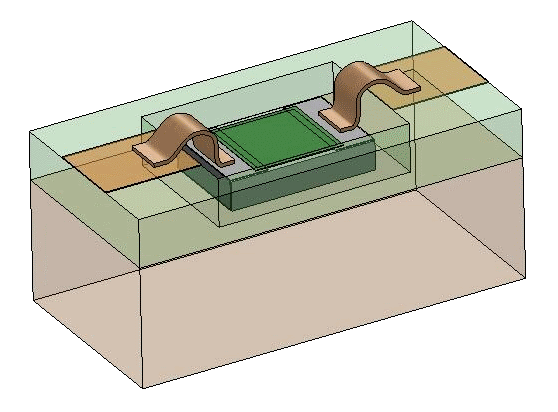

Typical RM Series Application
